Discover the perfect wire Erosion machining for your needs, from small and large options to high speed and slow-moving options. Explore our range of EDM cutting machines below!

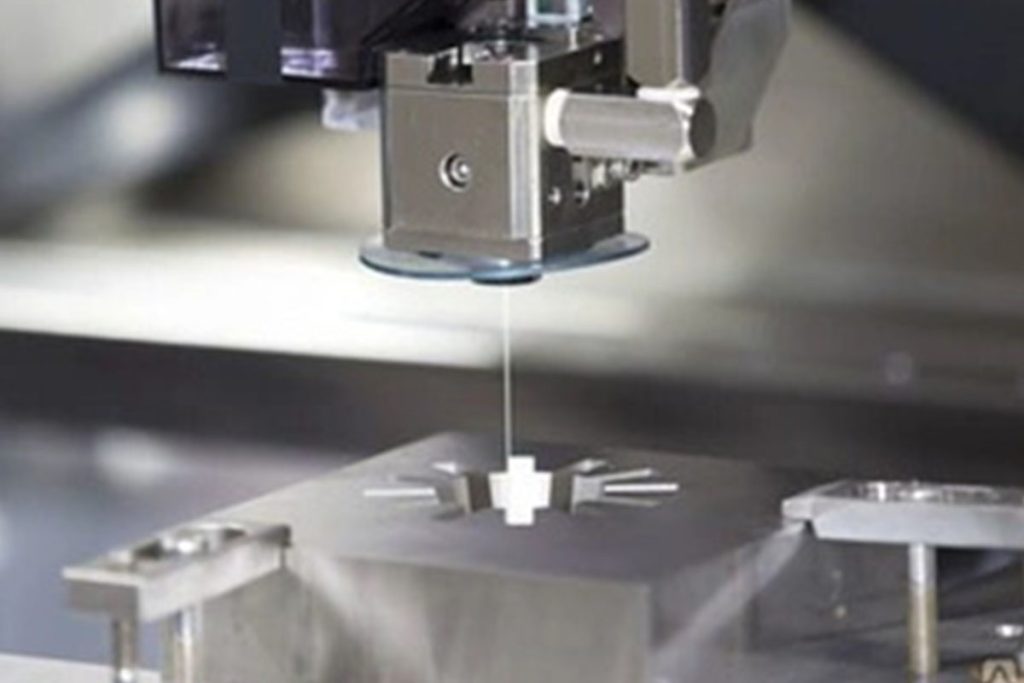

A wire Erosion machine (wire cut electrical discharge machine) is a precision tool used to cut conductive materials with a thin electrode wire. It operates by generating sparks between the wire and the material, which erodes the metal along the desired path. This machine is ideal for producing intricate shapes and achieving tight tolerances in hard metals.
Wire Erosion Machine
Wire Cut EDM Machine Working Principle
The EDM wire machine combines electrical discharges with precise wire movement to cut materials with exceptional accuracy.
Electrical Discharge: A thin wire, usually brass or copper, generates controlled electrical discharges to cut conductive materials.
Non-Contact Process: The wire does not physically touch the workpiece; instead, sparks erode the material.
Wire Movement: The wire is fed continuously from a spool, allowing precise and uninterrupted cutting.
Deionized Water: Deionized water is used as a dielectric fluid to cool the process and flush away debris.
Heat and Material Removal: The sparks create localized heat, vaporizing the material at the cutting point.
CNC Precision: CNC control ensures high accuracy for intricate and complex shapes, ideal for tight tolerances.
Wire Erosion Machine
Materials A EDM Wire Cutting Machine Can Cut
Wire cut EDM machines are versatile tools capable of cutting a wide range of conductive materials. Here are five common materials that can be effectively machined using wire Erosion technology:
Aluminum
Aluminum is a lightweight and highly conductive metal, making it suitable for wire Erosion. Although softer than other materials, wire Erosion can achieve tight tolerances, which is crucial for applications in the aerospace and automotive industries.
Titanium
Titanium is a strong, lightweight material commonly used in aerospace and medical applications. Wire Erosion is ideal for cutting titanium due to its ability to handle the material's toughness and high machining temperatures.

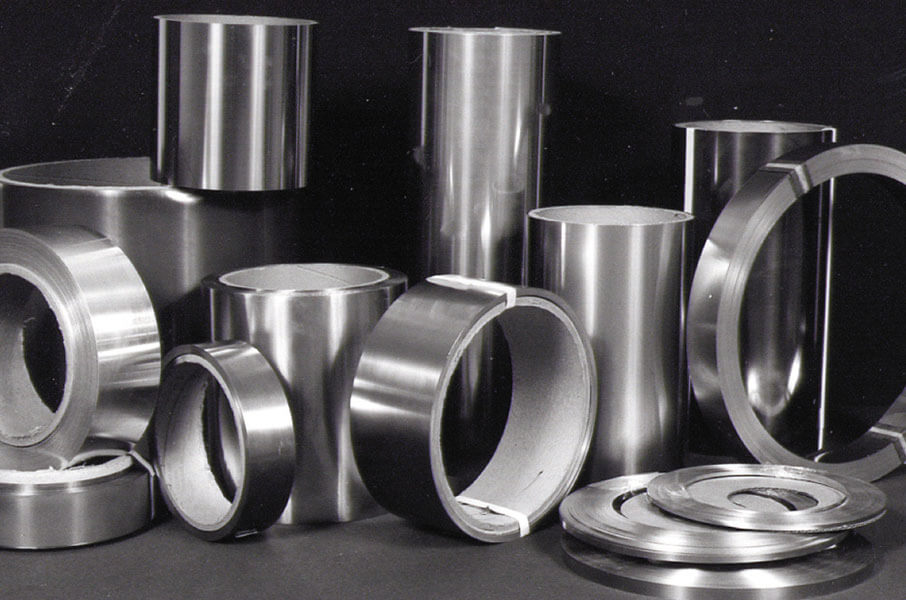

Steel
Hardened steel is one of the most common materials processed by wire Erosion. The method is preferred for its ability to create intricate shapes and precise dimensions, making it ideal for manufacturing molds, dies, and precision tools.

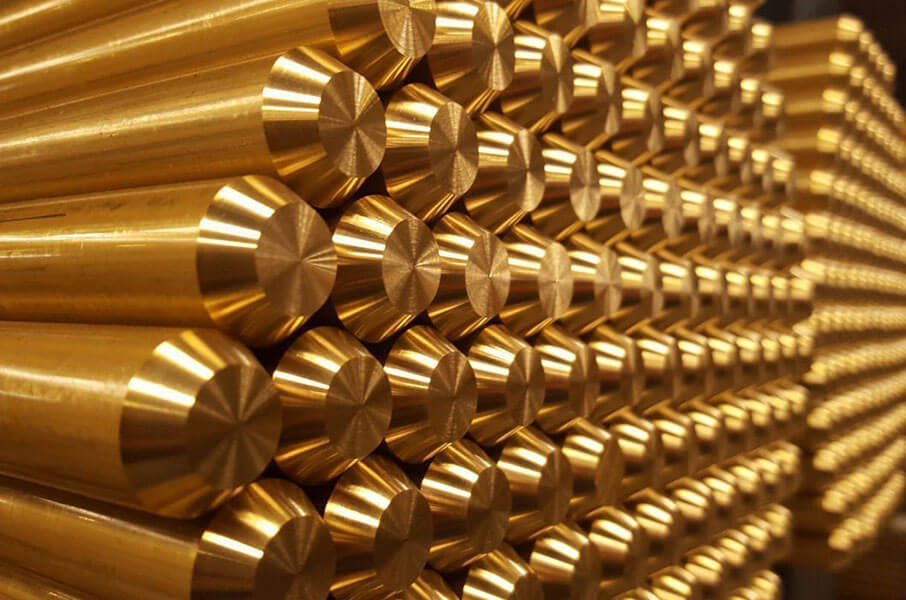

Brass
Brass, an alloy of copper and zinc, is easy to cut with wire Erosion due to its excellent electrical conductivity. While it is softer than other metals, wire Erosion can produce detailed components efficiently and accurately, making it ideal for various applications.
Graphite
Graphite is often challenging to machine with conventional methods, but wire Erosion excels at cutting this material. The non-contact nature of wire Erosion prevents damage and ensures a clean cut, making it ideal for electrical contacts and electrodes.

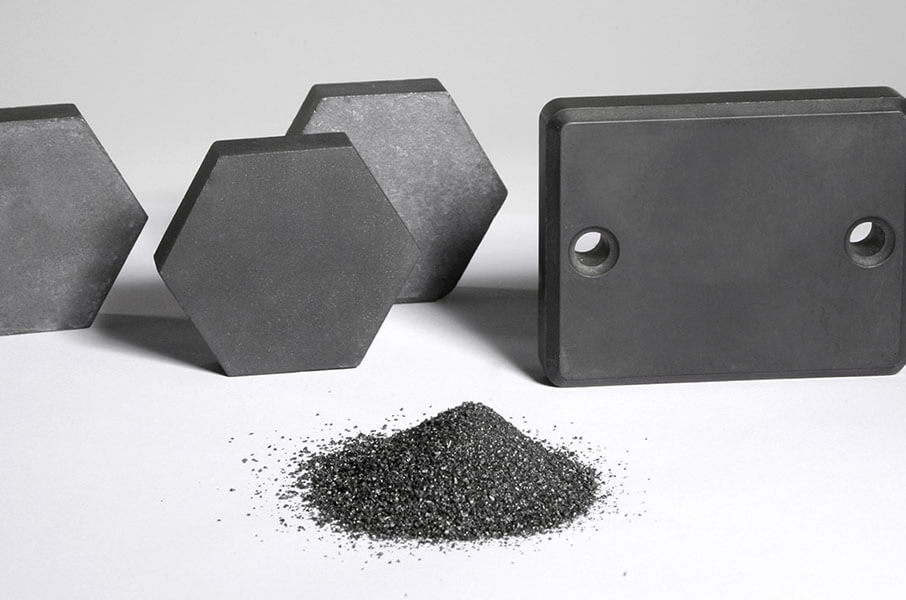

Carbides
All types of carbides, including tungsten, silicon, and boron, are frequently processed using wire Erosion because their exceptional hardness makes them extremely difficult to machine and renders traditional machining methods impractical and inefficient.
Wire Erosion Machine
Applications of Electrical Discharge Wire Cutting Machine
The EDM wire cut machine is vital in the automotive industry, enabling precise manufacturing of components like cylinder heads, valves, and fuel injectors with tight tolerances and complex geometries. It efficiently processes alloys and steels, essential for molds and dies in casting, stamping, and forming parts.
Aerospace
Aerospace manufacturing requires precise tolerances and complex geometries. Wire EDM machining produces intricate parts for landing gear, engines, and other essential components. It's also crucial for creating accurate molds for plastic injection parts in aircraft interiors, making it indispensable in the industry.
Medical Devices
The wire EDM cutting machine is essential in medical manufacturing, providing the precision required to produce intricate instruments such as forceps and detailed orthopedic implants. Its accuracy ensures medical devices meet strict specifications for compatibility and effectiveness within the human body.
Die Tooling
Wire EDM machines quickly produce injection mold inserts, which require precise shapes for accurate plastic part replication. This EDM machine also creates stamping dies for sheet metal components and is effective for producing extrusion dies, blanking dies, shaping tools, and cutting punches.
Wire Erosion Machine
Your Trusted Partner In Manufacturing Wire Erosion Machine
As a professional manufacturer specializing in wire Erosion machines, we have a dedicated team of engineering and technical personnel focused on product development and quality control. Our comprehensive machining equipment and complete testing methods enable us to maintain high standards, and we have successfully obtained ISO 9001:2000 international quality management system certification. With superior product performance and comprehensive after-sales service, we have received unanimous praise from a wide range of users.
Our main products, which cater to various customer needs, include small wire Erosion machines, large wire Erosion machines, CNC wire cut EDM machines, benchtop wire Erosion machines, slow moving wire Erosion machines, medium speed wire Erosion machines, and high speed EDM wire cutting machines; these products are widely exported to Europe, America, Southeast Asia, the Middle East, and other regions around the world.
Wire Erosion Machine
Why Choose Us For Your Wire Erosion Cutter
01. Rich Industry Experience
We have focused on the production of EDM machines for over 10 years, gaining extensive industry experience. Our engineers are well-versed in EDM technology and can provide tailored professional solutions.
02. Outstanding Product Performance
Our EDM wire cutting machines utilize advanced technology, delivering exceptional performance. With high machining precision and fast cutting speeds, they efficiently process a wide range of metal materials.
03. Flexible Custom Service
We can customize wire Erosion machines tailored to your specific needs. Whether it's the size of the machine or functional requirements, we are able to provide bespoke solutions to meet your unique demands.
04. After-Sales Service
We provide comprehensive after-sales service with a professional support team available anytime to address your questions. Whether you need troubleshooting assistance, or operational tips, we are here to help.

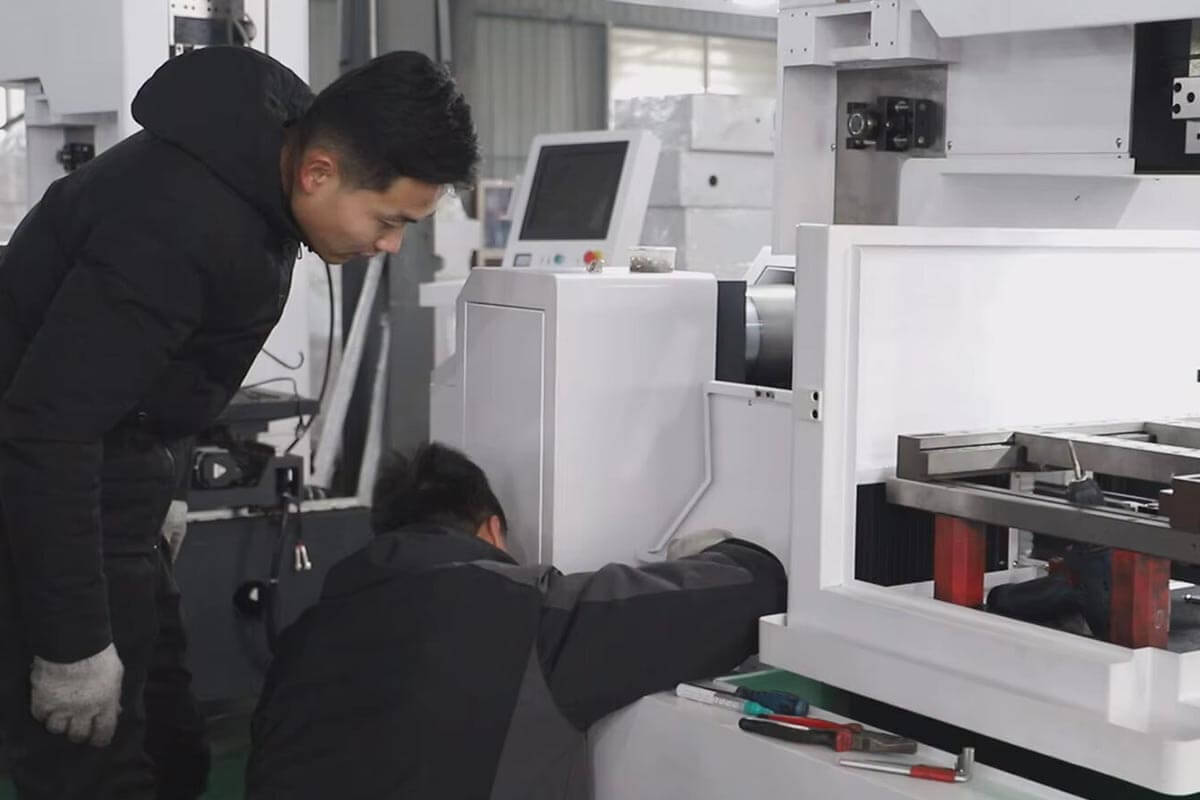

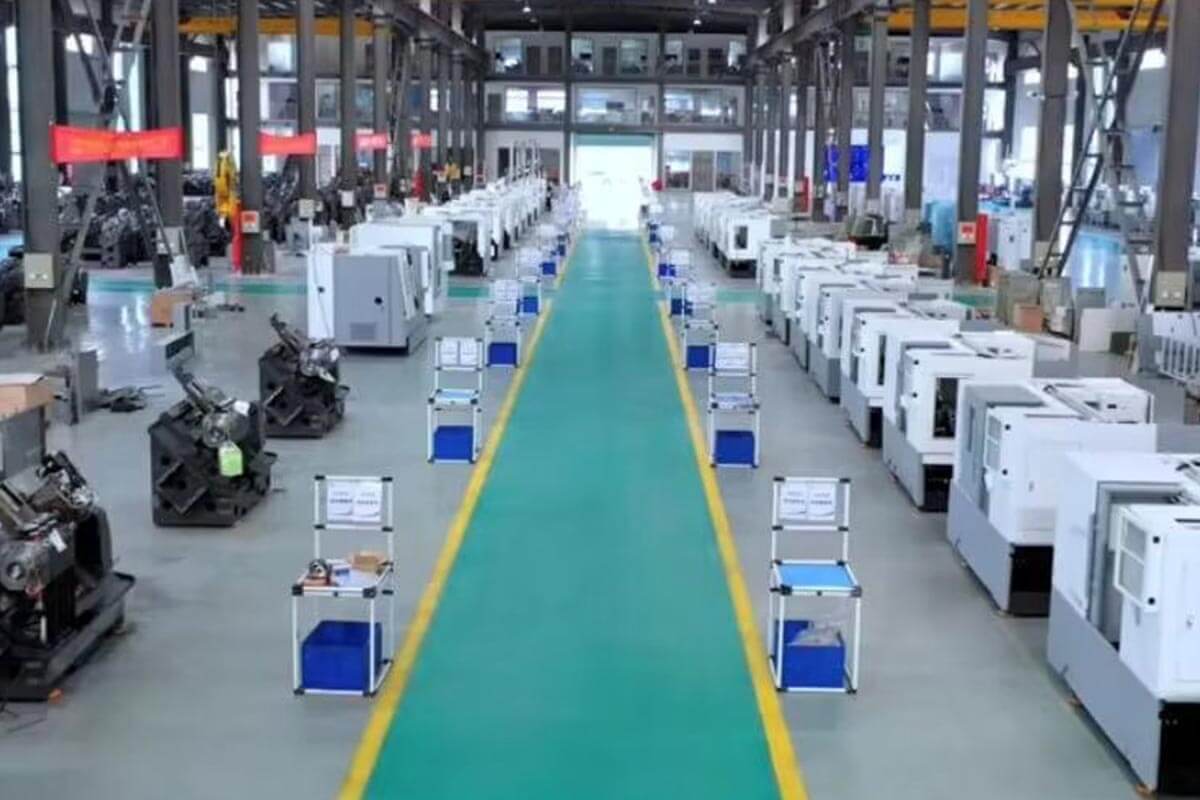

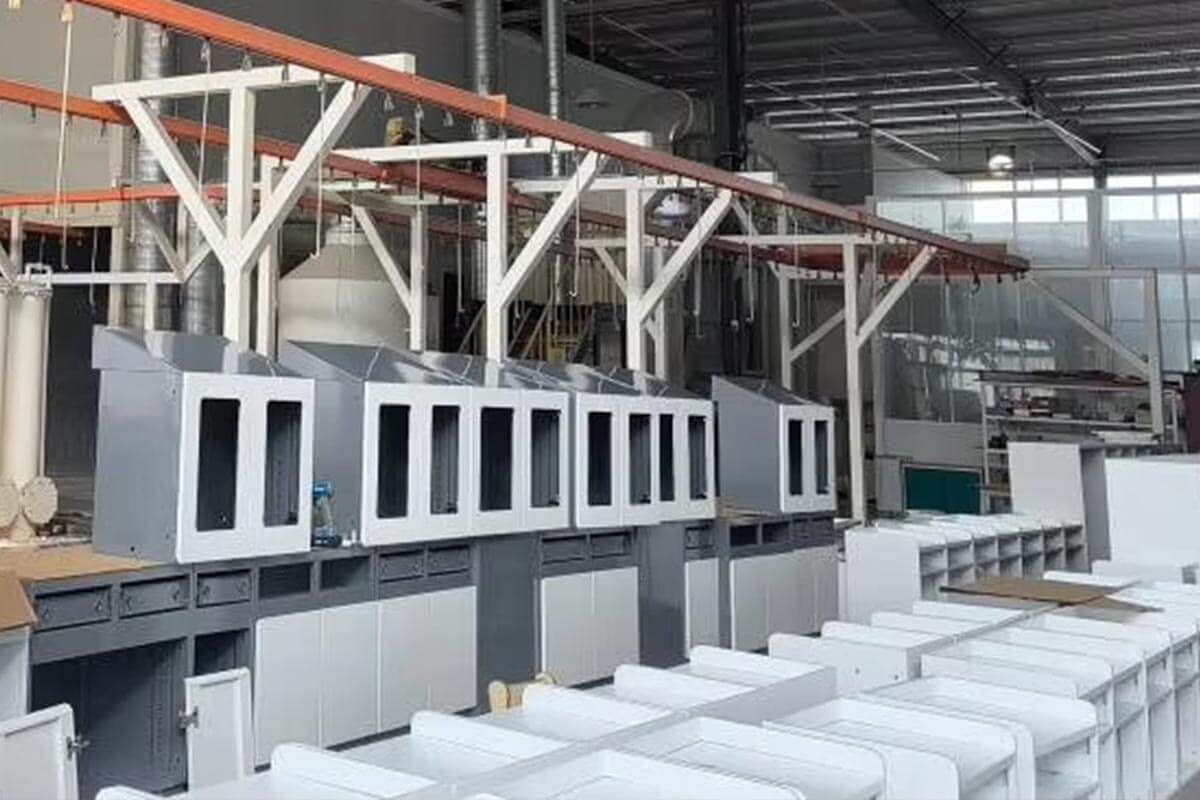

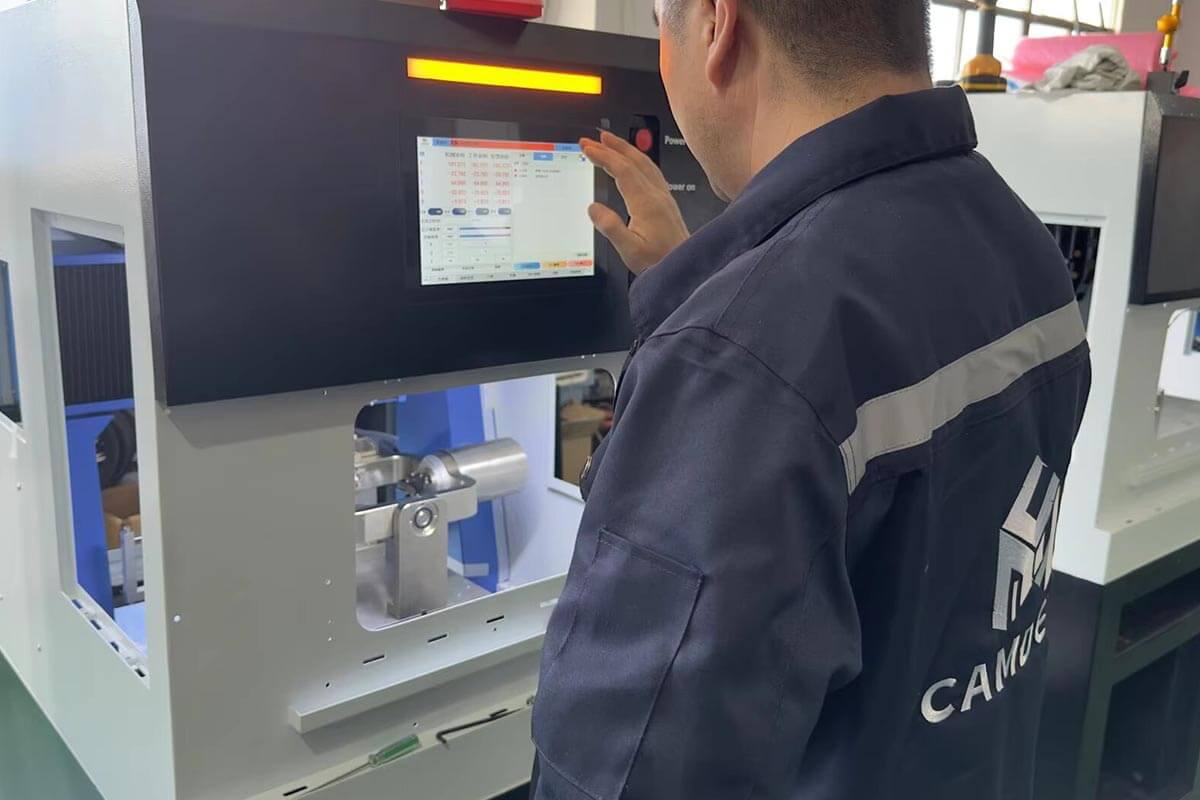

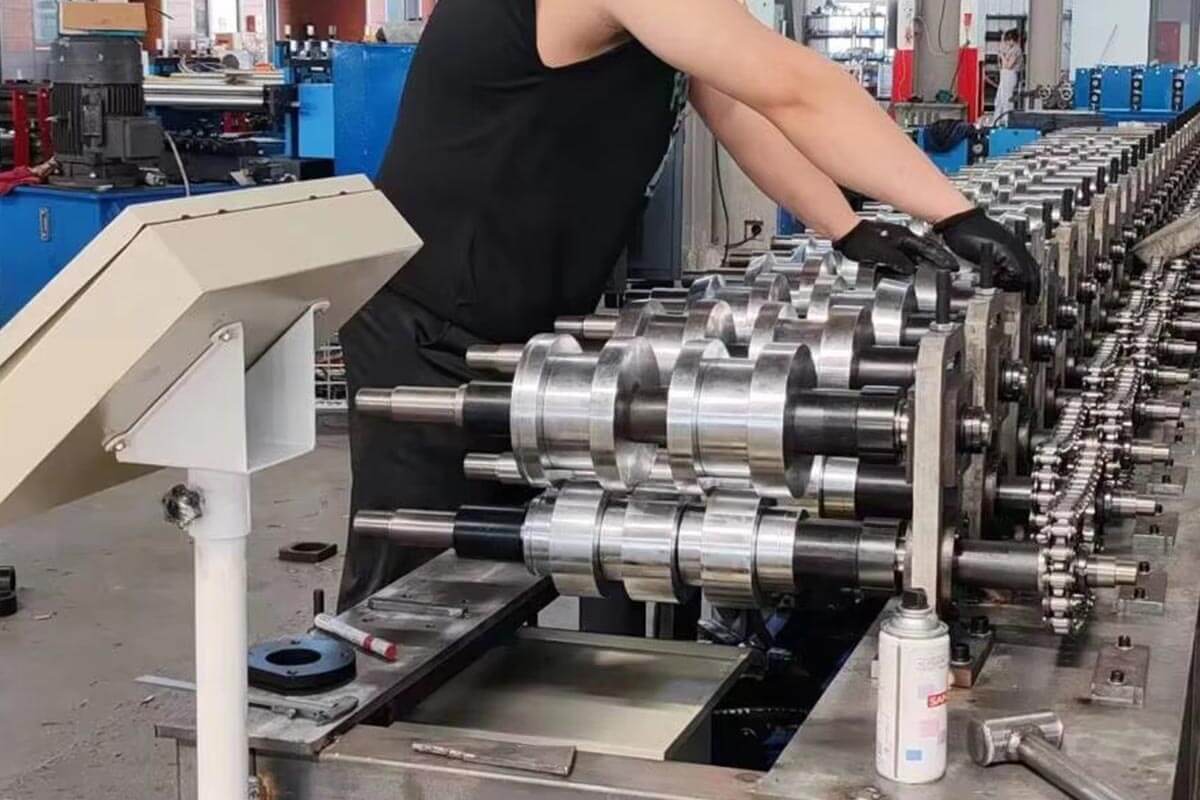

Tianqi leverage advanced technology and continuous innovation to manufacture high-quality wire Erosion machines. Our factory, located in Dongguan, is equipped with comprehensive processing equipment and a robust production system, enabling us to meet diverse customer needs while ensuring timely delivery without compromising quality. Partner with us to benefit from a facility committed to technology, innovation, and exceeding customer expectations.
Wire Erosion Machine
FAQs about Wire Erosion Machine
Q: How to choose the best wire Erosion machine for my needs?
A: First, match the worktable travel and cutting thickness to the size of the workpiece in order to select the appropriate model. Then, check the precision and surface roughness align with your specifications.
Q: Can you provide after-sales assistance for wire Erosion machines?
A: Damaged parts will be replaced free of charge during the warranty period, and after the warranty expires, replacements will be provided at cost price. In case of any issues, we will promptly offer solutions through video demonstrations or other methods.
Q: What is the warranty's time frame of our wire Erosion machines?
A: We provide a 12-month after-sales service guarantee. If you encounter any issues during use, feel free to contact us, and we will offer expert technical advice. If necessary, we will supply free replacement parts.
Q: What is the delivery estimate for the EDM wire cut machine?
A: If the wire Erosion cutter is in stock, we can arrange shipment within 3-5 days after receiving the payment. Typically, the delivery time is around 15 days, excluding national holidays.
