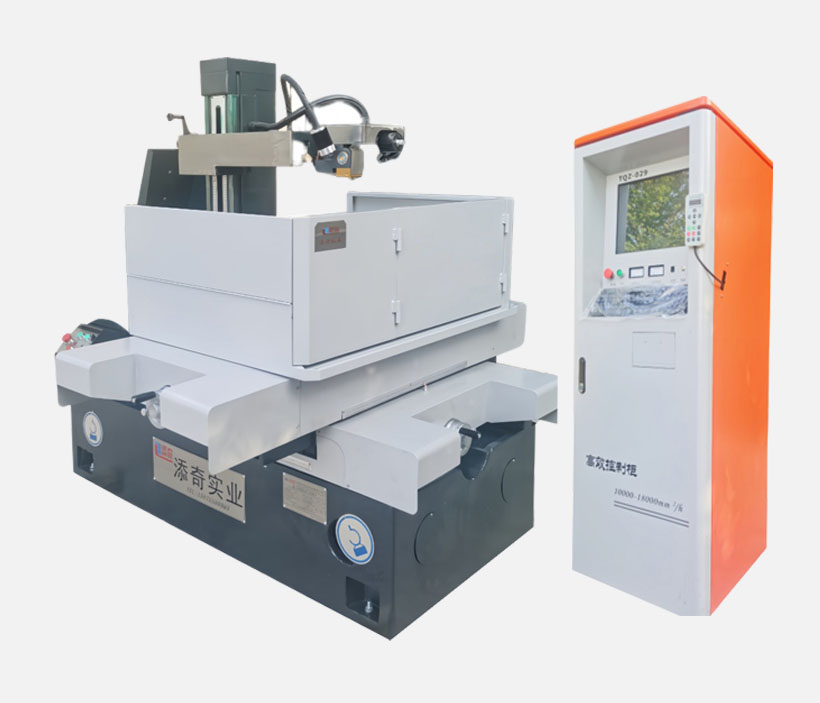

The DK77AZ-8500 high-speed wire EDM machine is designed for precision and efficiency. Its hard-rail design enhances stability and smooth operation, while a stable stepper motor ensures accurate transmission, achieving cutting speeds of up to 10000 mm²/min with a surface roughness of RA ≤ 1.2 µm.
This wire EDM machine excels at processing complex shapes, easily cutting both straight lines and arcs. The fully enclosed worktable with a splash guard prevents liquid splatter, keeping the workspace clean. Additionally, with the wire drum’s special design, significantly improves wire feed stability.
| Model | DK77AZ-8500 |
|---|---|
| Worktable Size | 1190×780mm |
| Worktable Travel | 800×550mm |
| Maximum Cutting Thickness | 600mm/350mm |
| Maximum Load | 600kg |
| Maximum Cutting Taper | ±6°/80mm |
| Maximum Cutting Speed | 10000mm²/min |
| Best Surface Roughness | 1.2um |
| Electrode Wire Diameter | 0.18mm |
| Electrode Wire Running Speed | Variable Speed Control of the Inverter |
| Machining Accuracy | According to GB/T 926-2005 standard |
| Overall Dimension | 2200×2000×2250mm |
| Machine Weight | 2150kg |
